EC-400

Detail

EC-400

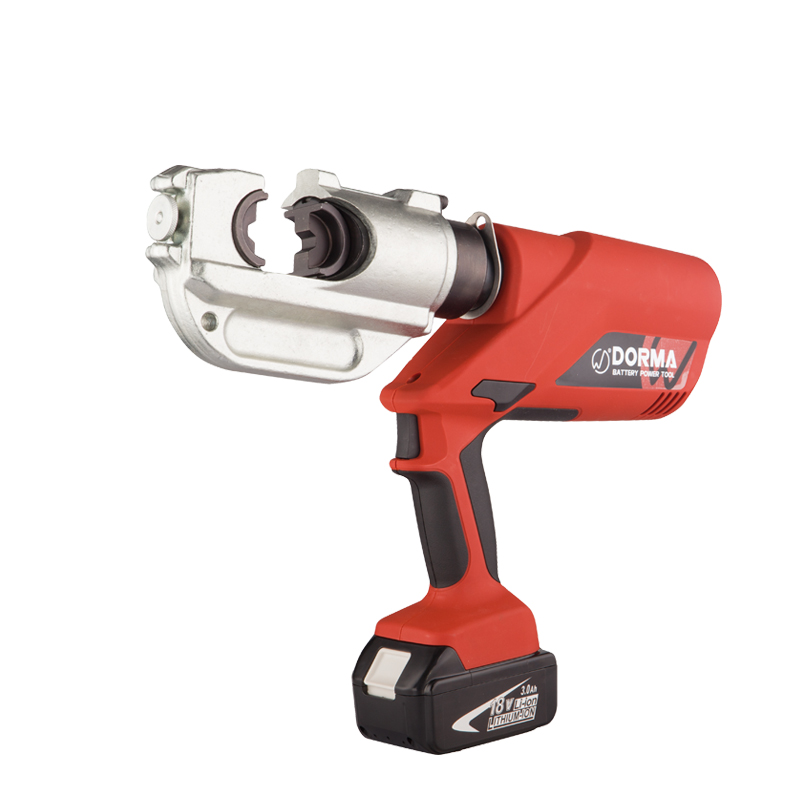

Battery Crimping Tool 16-400mm²


1.Micro computer control system-automatically detects the pressure when in crimping with double safety protect.

2.The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

3.If a deviation from the set operation pressure or low battery charges Identified, an acoustic signal sounds and a red display flashes.

4.One key control- press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston Return to the original position


   Techical Data


Crimping range:             16-400mm²
Stroke:       32mm
Cimp/charge:320times(CU150MM2)
Crimpinoycde:10-16s(depend on th size of cable)
Voltage:     18V
Crimping cycle:5.0Ah
Charging time:       45minutes
Package:Plastic case
   ACCESSORIES:
Crimping die:16.25.35.50.70.95.120.150.185.240

300.400mm²
Battery:   2pcs
Charger:       1pc(AC110-230V,50-60Hz)
Sealing ring of cylinder:1set
Sealing ring of safety valve:1set
