EC-400B

EC-400B

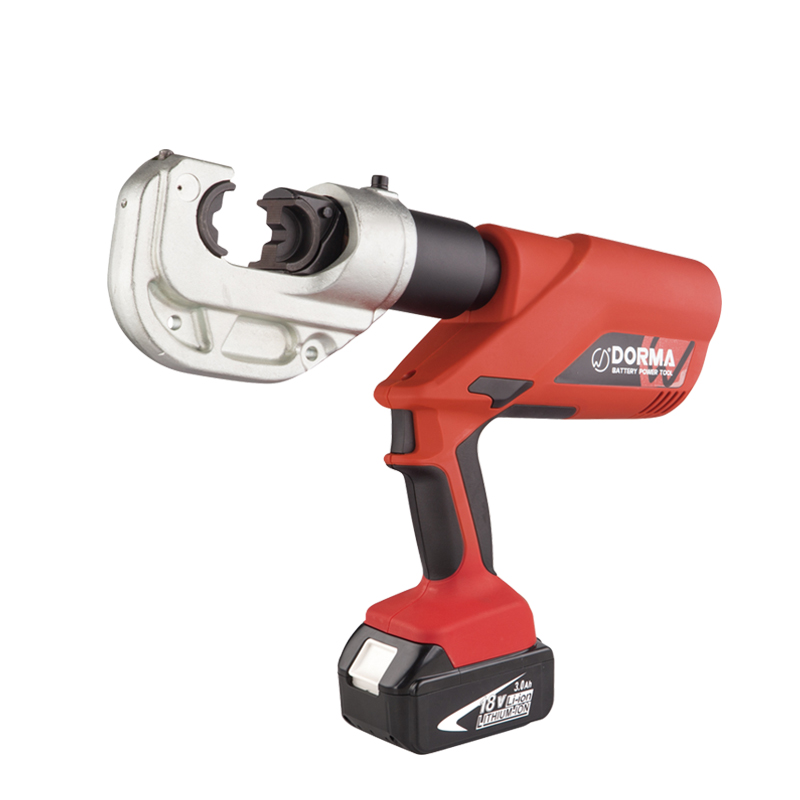

Battery Crimping Tool 16-300mm²

1.Micro computer control system-automatically detects the pressure when in crimping with double safety protect.

2.The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

3.If a deviation from the set operation pressure or low battery charges is Identified, an acoustic signal sounds and a red display flashes.

4.One key control- press the trigger to start working, half loosing the trigger forcing pressure, loosing ful卜means piston Return to the original position.

5.A Temperature sensor makes the tool stop working automatically when the temperature is over 60℃ under long time working, the fault signal sounds, it means the tool can't continue to work until the temperature reduced to the normal.
