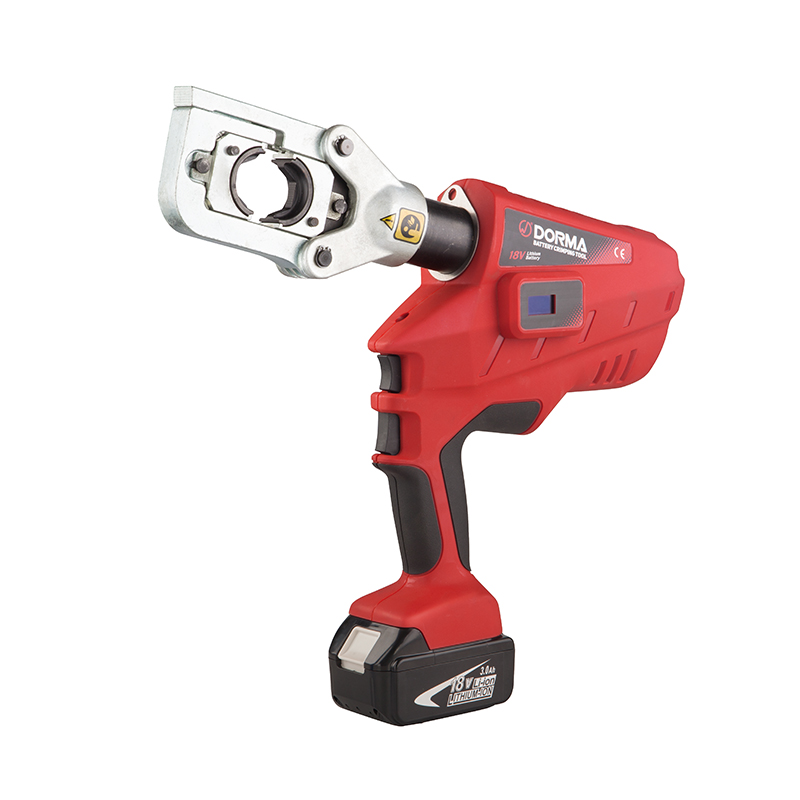

NEC-60UNV

NEC-60UNV

Battery MultiFunctional Tool

Multifunctional

1.Cu compression cable lugs and compression joints 16-300mm²

   Al compression cable lugs and compression joints 10-240mm²

2.Φ40mm Cu/Al cable and Armoured Cu/Al cable

3.Round punches:Φ22. 5-61.5mm in the 3.5mm mild steel

General features

1.The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached

2. A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston&die when the trigger is released.

3.The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies forwards the connector and a slow crimping motion.

4.The crimping head can be smoothly turned by 360° around the longitudinal axis in order to gain better access to tight comers and other difficult working areas

5.Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.

6.A Temperature sensor makes the tool stop working automatically when the tempreture over 60℃ under long time working. the fault signal sounds，it means the tool can't continue work until the tempreture reduced to the normal.
