NEC-300

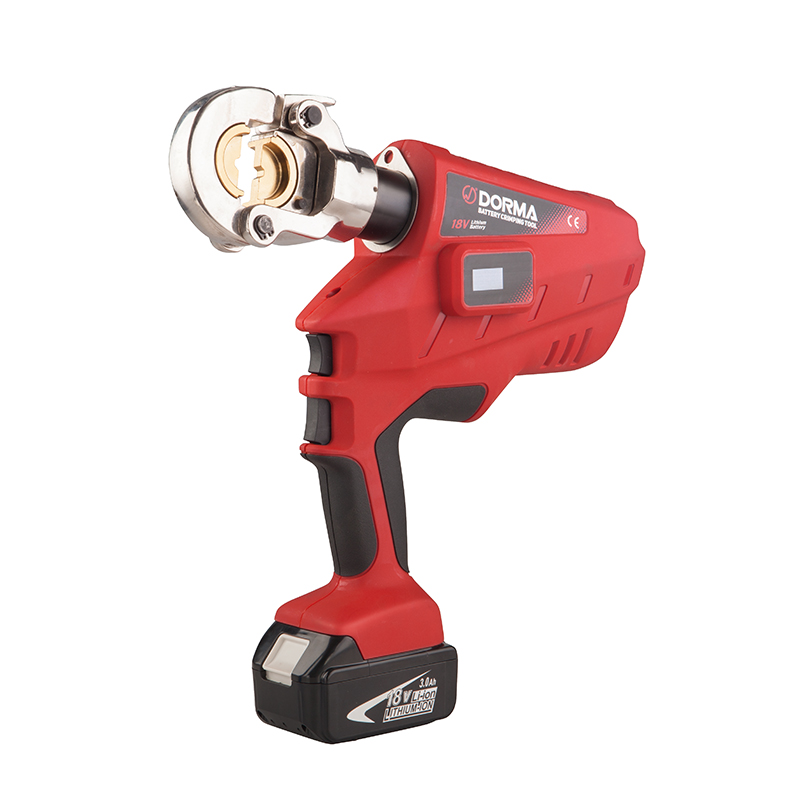

Battery Crimping Tool 16-300mm²
1.Micro computer control system-automatically detects the pressure when in crimping with double safety protect.
2.The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow cimping.
3.If a deviation from the set operation pressure or low battery charges is IdentifIed, an acousic signal sounds and a red display flashes.
4.One key control- press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston Return to the original position.
5.A Temperature sensor makes the tool stop working automatically when the temperature is over 60℃ under long time working, the fault signal sounds,
it means the tool can't continue to work until the temperature reduced to the normal.
Techical Data | |
| Crimping range: | 16-300mm² |
| Stroke: | 17mm |
| Cimp/charge: | 320times(CU150MM2) |
| Crimping cycle: | 3-6s(depend on th size of cable) |
| Voltage: | 18V |
| Capacity: | 5.0Ah |
| Charging time: | 45minutes |
| Package: | Plastic case |
| Crimping die: | 16.25.35.50.70.95.120.150.185 |
| 240.300mm² | |
| ACCESSORIES: | |
| Battery: | 2pcs |
| Charger: | 1pc(AC110-240V,50-60Hz) |
| Sealing ring of cylinder: | 1set |
| sealing ring of safety valve: | 1set |
