NEC-400

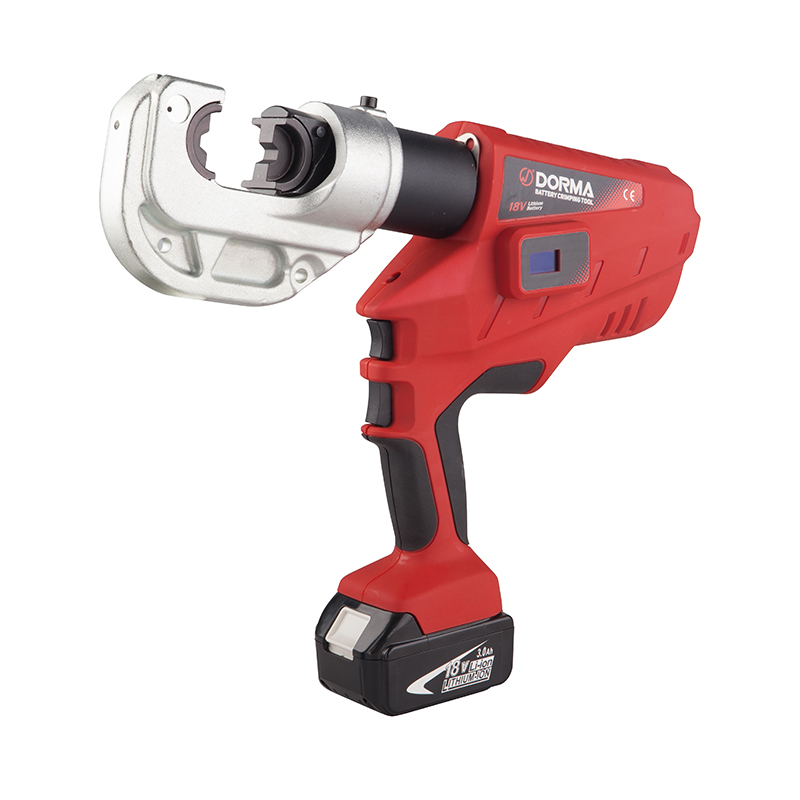

Battery Crimping Tool 16-400mm²
1. Micro computer control system-automatically detects the pressure when in crimping with double safety protect.
2. The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
3. If a deviation from the set operation pressure or low battery charges is Identified, an acoustic signal sounds and a red display flashes.
4. One key control-press the trigger to start working. half loosing the trigger means stop forcing pressure, loosing fully means piston Return to the original position.
5. A Temperature sensor makes the tool stop working automatically when the temperature is over 60℃ under long time working, the fault signal sounds,it means the tool can't continue to work until the temperature reduced to the normal.
Techical Data | |
| Crimping range: | 16-400mm² |
| Stroke: | 38mm |
| Crimp/Charge: | 120times(CU150mm²) |
| Crimping cycle: | 10-20s(depend on th size of cable) |
| Voltage: | 18V |
| Capacity: | 5.0Ah |
| Charging time: | 45minutes |
| Package: | Plastic case |
| Crimping die: | 16.25.35.50.70.95.120.150.185.240 |
| 300.400mm² | |
| ACCESSORIES: | |
| Battery: | 2pcs |
| Charger: | 1pc(AC110-240V,50-60Hz) |
| Sealing ring of cylinder: | 1set |
| sealing ring of safety valve: | 1set |
